Transient thermal studies problem occurred

Asked By Gary D Reed 0 points N/A Posted on - 03/07/2013

Hello,

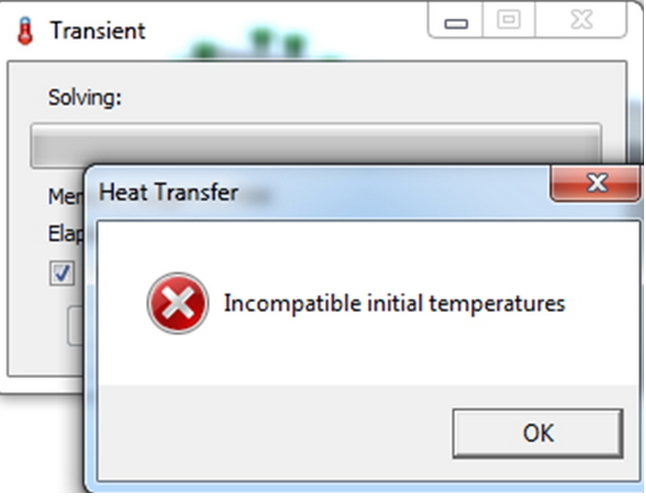

An error message appears (as shown in the screenshot) for the assembly when I did run my work in Solidwork simulation while simulating of transferring of heat. I don’t understand actually what shall I do now. Can you please help me?

Heat Transfer

Incompatible initial temperatures

• Status: Open
• Question Views: 761
• Answer Count: 1
• Vote Up 0 Vote Down

• Answer Accepted: No
• Question Category: Hardware

Answered By Bennie S Easter 20 points N/A #176171

Transient thermal studies problem occurred

Hello Gary D Reed,

Well, in thermal analysis, we define conduction as the flow of heat inside and between the bodies and radiation is the transfer of heat through electromagnetic waves.

In this case if you are getting error of incompatible initial temperatures, you have to run an analysis to make estimates of heat transfer coefficients on several different surfaces or you can try a convectional coefficient on exposed to air surfaces.

For other relevant information regarding this, you can refer to the solid works website and their knowledgebase.

Hope this may help in solving your problem.

Thanks,

Bennie
