How To Reinstall The Jumper in Normal Mode ?

Asked By 110 points N/A Posted on -
qa-featured

Hello, I have a pentium IV computer.

i want to install windows xp but i can't do it.

when i on my pc it goes auto boot menu and when i setup boot it shows me this message "Turn off Power and Reinstall The Jumper In Normal Mode". I check my CPU connection all are okay but still show me this message.so please tell me what can i do now?

SHARE
Best Answer by james18
Best Answer
Best Answer
Answered By 0 points N/A #111747

How To Reinstall The Jumper in Normal Mode ?

qa-featured

Try this option if it will work:

  1. If you have your motherboards manual, it can help a lot to fix the problem you are facing.
  2. shut down your computer and make sure it's not plug in.
  3. open the case and try to familiarize your system.
  4. I assumed that your board is shipped with CMOS clear jumper setting. The only thing you can do first is try to look at the cmos panel and put the jumper in the clear position. There are boards that have jumper on cmos already while other don't have.
  5. Now power on your computer again and wait if you can see the error again. If this method fails then try to remove the battery for at least 5 to 10mins then put it back and power on your system. Always have your manual or motherboards specs beside you to keep you always in good track. It can help recognize the cause of the error easily and you can troubleshoot it with yourself.
Answered By 0 points N/A #111748

How To Reinstall The Jumper in Normal Mode ?

qa-featured

HI,

  • I guess the problem occurs on how you configure the set up in your BIOS system menu.

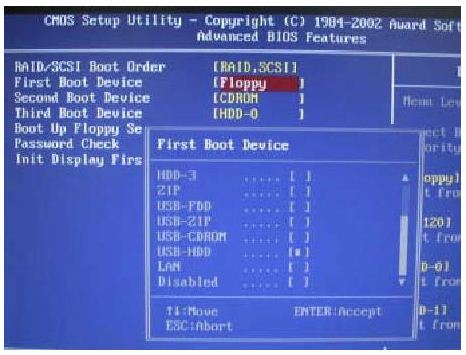

  • Try to restart your computer and Press Delete key, Tab key or Esc key in your keyboard in order to go to its BIOS Set up  menu.
  • Find the all the drives that stop the HALTS the operation of BOOTING and ENABLE it all.
  • Then 1st BOOT… Select the DVD rom or USB if you used a flash drive bootable OS installer.
  • Above are the BIOS you will seen on the screen.
  • Choose 1st BOOT that can allow the INSTALLER to RUN.
  • Then press F10 to save the change items after the configuration.
  • Then try to RUN your installer again.

I hope this will help you to boot up your installer.













Answered By 574715 points N/A #309067

How To Reinstall The Jumper in Normal Mode ?

qa-featured

That is not a problem with the CPU but more likely from the hard drive. I think your hard drive is configured incorrectly that’s why it shows you the message “reinstall the jumper.” You cannot install a new operating system if the hard drive is not configured properly. If you want to install an operating system on the computer, the hard drive must be configured bootable.

And to do this, the drive has to be set to “Master” using the jumper at the back of the hard drive. To check the jumper setting of the hard drive, shut down your computer and open the CPU case. After this, disconnect all the cables connected to the hard drive. Now, check the jumper located right beside where the ribbon cable is connected.

The jumper has to be set to “Master.” You can find the proper setting printed on top of the hard drive itself. See where the jumper should be connected to set it to “Master.”

Hard drive jumper setting Master
Hard drive jumper setting Master

A standard computer can support up to four separate hard drives and for this to work, each drive has to be configured properly: Primary Master, Primary Slave, Secondary Master, and Secondary Slave. When you install an operating system like Microsoft Windows, you need to install it on the Master drive because it cannot boot on the Slave drive.

You can install the operating system on any drive, since you can select in the BIOS which drive is the primary boot device, as long as it is set to Master.
