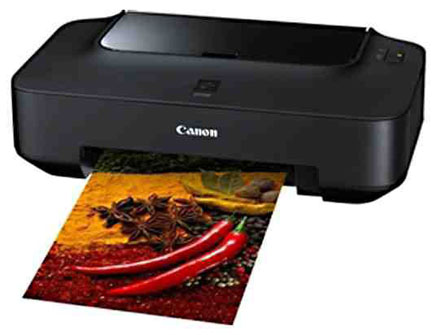

Solve Error message in Canon printer IP2770

Solve Error message in Canon printer IP2770

Hi Erni Fitri,

  This problem or this error message 5200 is very common among Canon Printers. There are a lot of reasons why your printer caught this error while using it.

It may be caused by too much heat on your cartridge, or the other way around; your cartridges maybe too cold because of being so much unused.

Or worse, there might be damage in your print head or logic board because of overheating. Regardless of the cause, there will always be a cure in response to this problem. Here is a number of solutions:

Solution 1

Replace and Refill

From what the phrase suggests, you have to refill your cartridges, or replace your cartridges. Once finished, try to operate your printer once again.

Solution 2

When the error pops, disconnect the plug, and reconnect it again. Print again once you turned it on.

Solution 3

1.       While the printer is on, turn it off through removing the cord.

2.       Open the top cover

3.       Move the cartridge holder to the middle

4.       Raise the gray bar

5.       Remove the print head assembly while the cartridges are in it

6.       Lower the gray bar while the print head is out

7.       Close the top cover

8.       Reconnect the printer to the power

9.       If it tells you to place the cartridges, then restore the print head

Resume to your printing once you are finished.

Solution 4

Refer to your manual for further troubleshooting.

Solution 5

Bring it to the nearest “Canon Service Center”.

>>Mathew Joni<<

Solve Error message in Canon printer IP2770

In Canon printers, error code “5200” appears because of low ink level. Other reasons that can cause this error are faulty cartridge and or a problem with the printer’s logic board. To fix the problem, first, turn off the printer. Next, press and hold the “STOP/RESET” button first then press and hold the power button. Now, as you hold the power button, release the “STOP/RESET” button.

While still holding the power button, press the “STOP/RESET” button twice. After this, release the power button. Now, wait until the printer displays “idle” which should appear after a couple of seconds. When you see the message, open the printer’s top cover to show the cartridges. Lift up the cover then remove the black and color cartridges. Return the cover of the cartridge holder then turn off the printer.

Return the top cover then turn on the printer again. Wait until the printer initializes then return the cartridges.
