Gigabyte UP5 Motherboards features and connectivity

Asked By Quincy Nowell 10 points N/A Posted on - 06/07/2012

Hi there experts, can anyone please tell me about the connectivity functions and features coming up with Gigabyte UP5 Motherboards? Thanks in advance.

• Status: Open
• Question Views: 837
• Answer Count: 2
• Vote Up 0 Vote Down

• Answer Accepted: Yes
• Question Category: Misc Hardware

Best Answer by Sharath Reddy

Go To Solution

Answered By Partho Antino 0 points N/A #131978

Gigabyte UP5 Motherboards features and connectivity



The Gigabyte X79S UP5 is actually based on C606. This kind of board is server oriented that is an alternative of X79.

Some nice features of this C606 chipset are as follows:

processor support for SAS & XEON

dual LAN from Intel and Atheros.

eight (8) memory slots for DDR3.

Fourteen (14) SATA ports and nine (9) of those ports are SAS certified.

OC switch on the back panel

Dual BIOS

six (6) super speed USB ports

four (4) PCIe X 16 slots

dual FireWire ports

Eight (8) DIMM slots that supports ECC memory

About Partho Antino

Questions
0

Answers
54

Best Answers
6

• Vote Up 0 Vote Down

• Posted on - 06/11/2012
• Question Category: Misc Hardware

Best Answer

Best Answer

Answered By Sharath Reddy 590495 points N/A #131979

Gigabyte UP5 Motherboards features and connectivity

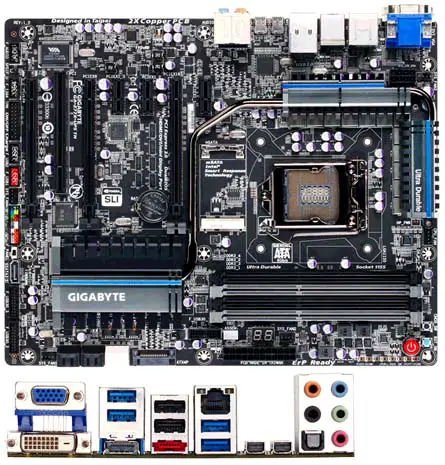

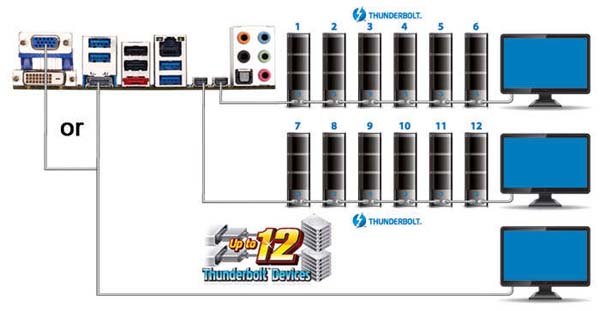

The GIGABYTE GA-Z77X-UP5 TH motherboard or more particularly the GIGABYTE motherboard is the very first brand to offer a fully certified dual onboard Thunderbolt ports. It can connect up to 12 devices including 3 digital displays all at the same time with a magnificent transfer speed that is able to transfer 1 TB in only about 5 minutes.

This is the very first brand of motherboard that offers the fastest connection interface for the desktop computer. It supports Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium, and Intel Celeron processors that are on socket LGA1155. It has the Intel Z77 Express Chipset. It has 4 DDR3 DIMM sockets that can support up to 32 GB of RAM.

Remember that 32-bit editions of Microsoft Windows have RAM limitations. When the installed RAM is already above 4 GB, it will display a much lesser amount of memory than the actual installed physical memory. It has a built-in Intel DSL3510L video card. It also has a built-in Realtek ALC898 sound card that supports X-Fi Xtreme Fidelity and EAX Advanced HD 5.0 technologies and an Intel GbE network adapter.

The GIGABYTE GA-Z77X-UP5 TH motherboard ships with Norton Internet Security [OEM version], Intel Smart Connect Technology, Intel Rapid Start Technology, Intel Smart Response Technology, and LucidLogix Virtu MVP applications. It supports Windows XP, Windows Vista, Windows 7, and Windows 8. Also visit GIGABYTE GA-Z77X-UP5 TH for the complete board specifications.
