ATI Fire GL V7200 details

Asked By 40 points N/A Posted on -
qa-featured

I want to buy an ATI Fire GL V7200 from online. But I have some doubts about this video card. I want some technical details.

Like bus type, Max resolution, OS required, and its Power consumption.

Hope someone will give me reply.

SHARE
Answered By 0 points N/A #136250

ATI Fire GL V7200 details

qa-featured

ATI Fire GL V7200 is a graphic card produced by HP for high-end workstations that features 256 MB video RAM and 512-bit internal ring bus width. It is compatible with HP xw4400, HP xw6400 and HP xw8400 platforms. The bus type is PCI Express x16.

It has a maximum external resolution of 3840 x 2400. It supports Windows Vista, Windows XP, and Windows 2000 operating systems. It is compliant with graphic APIs of Open GL 2.0 and Microsoft DirectX 9.0. It requires 450 watt power supply.

V7200 exactly looks the same as V7350 except that the latter stores large texture sets and has 1 GB of RAM. It indicates that V7200 is for professional users that do not allow too many textures and large memory space.

You may purchase ATI Fire GL V7200 online through Amazon.com at $895.99.

ATI Fire GL V7200
Answered By 580865 points N/A #315154

ATI Fire GL V7200 details

qa-featured

The ATI FireGL V7200 graphics adapter was an enthusiast-class professional video card built by ATI and was launched on October 2005. It supports Microsoft DirectX 9.0c and built on the 90 nm process, based on the R520 graphics processor in the R520 GL variant. The R520 graphics processor is an average sized chip with a die area of 288 square millimeters and 321 million transistors.

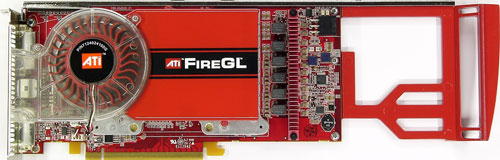

ATI FireGL V7200
ATI FireGL V7200

The ATI FireGL V7200 video card features 16 pixel shaders and 8 vertex shaders, 16 ROPs, and 16 texture mapping units. The ATI FireGL V7200 video card supports 256 MB GDDR3 video RAM, OpenGL 2.0, and Shader Model 3.0. It supports PCI Express 1.0 x16. The GPU is operating at 600 MHz and the memory is at 650 MHz.

It measures about 229 millimeters in length with dual-slot cooling solution.
